[124335] World Formula Engine

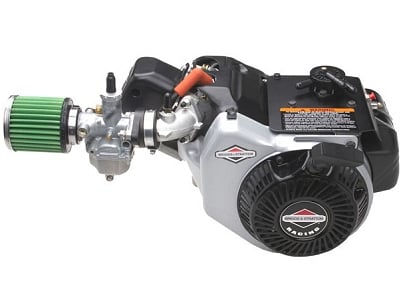

[124335] World Formula Engine Briggs 2025 Click Here for Parts Diagram (This item Is not eligible for free freight program) GENERAL SPECS Model/Type: 124335 8105W Original Version (Includes ELECTRIC STARTER and CLUTCH) -Displacement: 12.48 Cu. in -- 200 cc -Slant, 30 degree Overhead Valve Design -Dual ball bearing Cylinder -Dura-Boretm Cast Iron Cylinder Sleeve -Bore: 2.6875/2.6885 in. -Stroke: 2.2 in. -Compression Ratio: 9.7 to 1 -Factory Timing: 28 degrees BTDC -Recommended Oil capacity: 20 ounces RACING SPECIFICS -Dual ball bearing block -Specially cam ground, barrel-faced, moly coated domed piston -Chrome-faced top ring -Dual valve springs -3-piece automotive-style keepers -Dished valves -Nitrided exhaust valve -Cast aluminum manifold with rubber mounting flange -Racing designed combustion chamber -air filter -D-shape intake port -sprocket set (16-17 tooth) -Billet aluminum rod -Walbro? round slide carburetor Click here for more info Click Here For World Formula Parts Diagram (You will need Acrobat Reader to view)
